1.Product Description:
25 years warranty high efficiency home solar power system monocrystalline 375W solar panel
1)High efficiency solar cells from Tai Wan with more than 21% efficiency.
2)Anti-reflective and anti-soiling surface reduces power loss from dirty and dust.
3)Excellent mechanical load resistance:Certified to withstand high wind loads(2400Pa) and snow loads(5400Pa).
4)High salt and ammonia resistance
2.Reliable Quality:
1)Positive power tolerance:0+3%
2)100% EL double-inspection ensures modules are defects free
3)Modules binned by current to improve system performance
4)Potential Induced Degradation(PID) Resistant

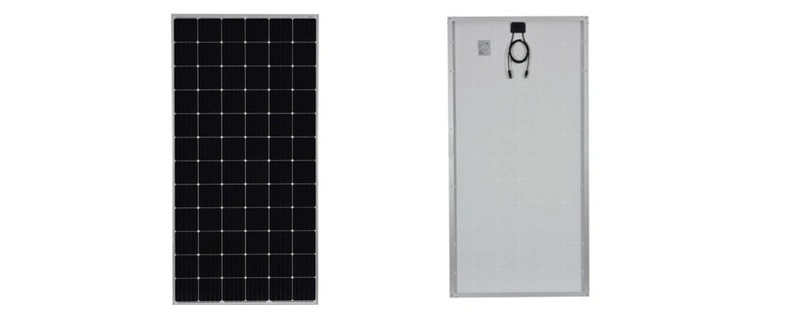

3.Product Images:
4.Electrical Data:
5.BOM List(Raw Material list):
The reason why we show our BOM list is that all supplier's solar panels are with all same appearance, customers does not know the quality.
Propsolar solar panel's raw materails are with all Top quality suppliers in the world.
Customers can verify our raw material suppliers or visit them when you come to China.
6.Production Flow:
7.Certifications(TUV IEC61215;IEC61730):
8.Project Reference:
9.Our Company:
Propsolar is the professional manufacturer of Photovoltaic (PV) modules,solar storage system,DC&AC solar water pump system.
25 years warranty high efficiency home solar power system monocrystalline 375W solar panel
1)High efficiency solar cells from Tai Wan with more than 21% efficiency.
2)Anti-reflective and anti-soiling surface reduces power loss from dirty and dust.
3)Excellent mechanical load resistance:Certified to withstand high wind loads(2400Pa) and snow loads(5400Pa).
4)High salt and ammonia resistance
2.Reliable Quality:
1)Positive power tolerance:0+3%
2)100% EL double-inspection ensures modules are defects free
3)Modules binned by current to improve system performance
4)Potential Induced Degradation(PID) Resistant
3.Product Images:
4.Electrical Data:
| Type | PS-M672355 | PS-M672360 | PS-M672365 | PS-M672370 | PS-M672375 |
| Rated Maximum Power at STC(W) | 355 | 360 | 365 | 370 | 375 |
| Open Circuit Voltage(Voc/V) | 47.4 | 47.7 | 47.9 | 48.1 | 48.3 |
| Maximum Power Voltage(Vmp/V) | 38.8 | 39 | 39.2 | 39.4 | 39.6 |
| Short Circuit Current(Isc/A) | 9.65 | 9.70 | 9.8 | 9.88 | 9.96 |
| Maximum Power Current(Imp/A) | 9.14 | 9.24 | 9.32 | 9.4 | 9.47 |
| Cell Efficiency(%) | 20.66 | 20.96 | 21.25 | 21.54 | 21.9 |
| Power Tolerance(%) | 0+3% | ||||
| Temperature Coefficient of Isc | +0.059%/ºC | ||||
| Temperature Coefficient of Voc | -0.330%/ºC | ||||
| Temperature Coefficient of Pmax | -0.410%/ºC | ||||
| STC | Irradiance 1000W/m2,Cell Temperature 25ºC, Air Mass 1.5 | ||||
| Certification | CE, TUV(IEC61215,IEC61730) | ||||
| Mechanical Data | |
| Cell(mm) | Mono156.75×156.75 |
| Weight(kg) | 21(approx) |
| Dimensions(L×W×H)(mm) | 1956*992*40 |
| No.of Cells | 72 |
| No.of Diodes | IP68,3 diodes 20A |
| Connector | MC4 |
| Packing Configuration | 26pcs per box |
| Working Conditions | |
| Maximum System Voltage | DC 1500V(IEC) |
| Operating Temperature | -40ºC/+85ºC |
| Maximum Static Load,Front(e.g,snow and wind) | 5400Pa |
| Maximum Static Load,Back(e.g,wind) | 2400Pa |
| NOCT | 45±2ºC |
| Application Class | Class A |
5.BOM List(Raw Material list):
| Item | Supplier | Model | Advantages | Certification |
| Solar Cell | Taiwan NSP&GINTECH Solar | PERC High Efficiency Cells | High efficiency | CE,TUV |
| PV Glass | FLAT Glass Group | Low Iron AR Coated 3.2mm Glass | High Transmittance | CE,TUV |
| EVA | SVECK Group | 0.45mm Thickness | PID Resistance with 1500VDC | CE,TUV |
| Backsheet | JOLYWOOD Group | TPT 300um plus | Double-side fluorine coated with 1500VDC | CE,TUV |
| Junction Box | PROPSOLAR Group | GF50XY | IP68 with 1500VDC | CE,TUV,UL |
Propsolar solar panel's raw materails are with all Top quality suppliers in the world.
Customers can verify our raw material suppliers or visit them when you come to China.
6.Production Flow:
7.Certifications(TUV IEC61215;IEC61730):
8.Project Reference:
9.Our Company:
Propsolar is the professional manufacturer of Photovoltaic (PV) modules,solar storage system,DC&AC solar water pump system.
We specialize in the development and utilization of new energy to provide one stop service and total solution to all global customers.
