365W Mono Solar Panel 365 Wp Perc 72 Cells Mono Solar Panel for Solar Energy System

365W Monocrystalline Solar Module Solar panels 365w refer either to a photovoltaic module, a solar hot water panel, or to a set of solar photovoltaic (PV) modules electrically connected and mounted on a supporting structure. A PV module is a packaged, connected assembly of solar cells. Solar panels can be used as a componen

Featured Products

365W Monocrystalline Solar Module

Solar panels 365w refer either to a photovoltaic module, a solar hot water panel, or to a set of solar photovoltaic (PV) modules electrically connected and mounted on a supporting structure. A PV module is a packaged, connected assembly of solar cells. Solar panels can be used as a component of a larger photovoltaic system to generate and supply electricity in commercial and residential applications. Each module is rated by its DC output power under standard test conditions (STC).

Prostar monocrystalline solar panels 365w is made with monocrystalline silicon solar cells, which are easily recognizable by the even dark coloring of the cells. Monocrystalline solar cells are made out of silicon ingots, which are cylindrical in shape. To optimize performance and lower costs of a single monocrystalline solar cell, four sides are cut out of the cylindrical ingots to make silicon wafers, which is what gives monocrystalline solar panels their characteristic look.

Monocrystalline solar panels 365w uses the latest innovative cell technology, increasing module power output and system reliability, ensured by 22 years of experience in module manufacturing, well-engineered module design, stringent BOM quality testing, an automated manufacturing process and 100% EL testing.

Function Features:

5 Busbar Solar Cell
5 busbar solar cell adopts new technology to improve the effciency of modules, offers a better aesthetic appearance, making it perfect for rooftop installation.

High Efficiency
High module conversion efficiency (up to 18.85%), through innovative manufacturing technology.

Severe Weather Resilience
Certified to withstand: wind load (2400 pascal) and snow foad (5400 pascal).

Low-light Performance
Advanced glass and solar cell surface texturing allow for excellent performance in low-light environments.

Maximized Energy Harvest
Impedance matching technology eliminates mismatch loses, more power from each module bin.

Higher Quality Assurance
100% EL test before and after lamination, and finished products EL test, providing higher quality assurance.

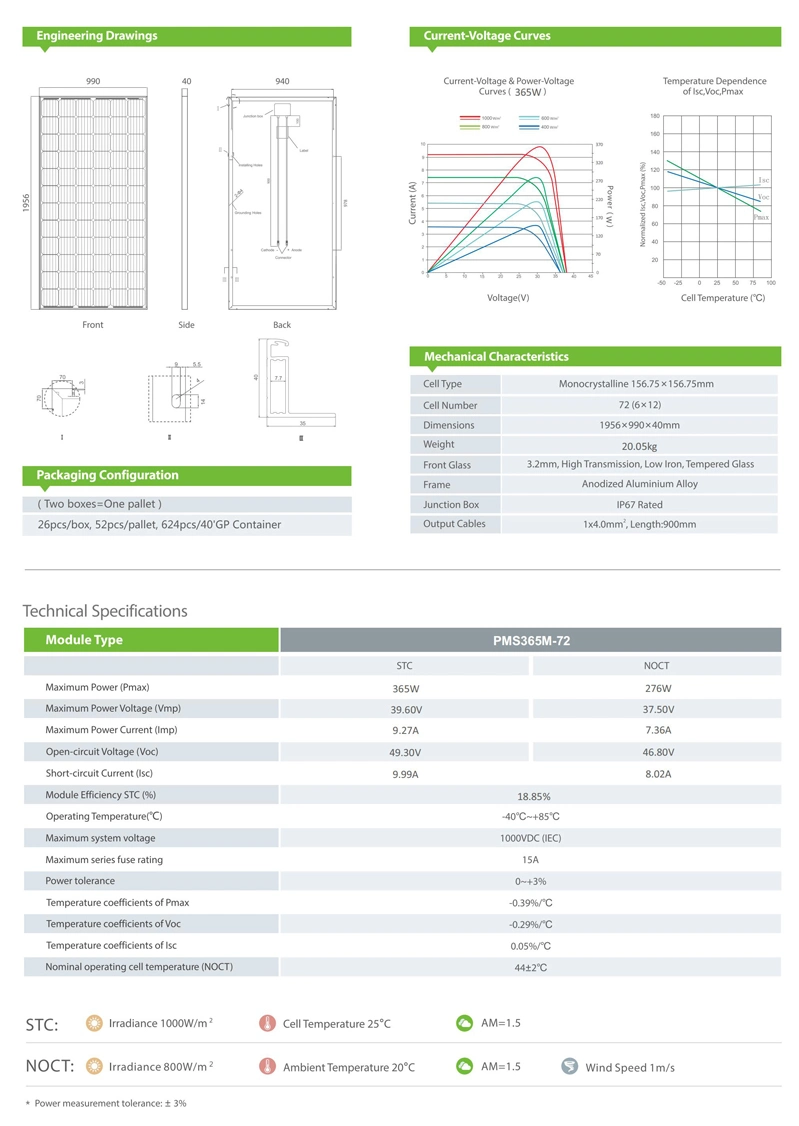

Technical Specifications:

Product Name
365W Mono Solar Panel
Brand
Prostar
Model
PMS365M-72
Module Efficiency STC(%)
18.85%
Cell Type
5BB Monocrystalline Silicon
Maximum System Voltage
1000VDC
Cell Number
72 Cells (6*12)
Maximum Solar Charge Current
15A
Maximum Power (Pmax)
365Wp
Front Glass
3.2mm
Maximum Power Voltage (Vmp)
39.6V
Junction Box
IP67 Rated
Maximum Power Current (Imp)
9.27A
Frame
Aluminium Alloy
Open-circuit Voltage (Voc)
49.3V
Connector
MC4
Short-circuit Current (Imp)
9.99A
Cable
PV Cable

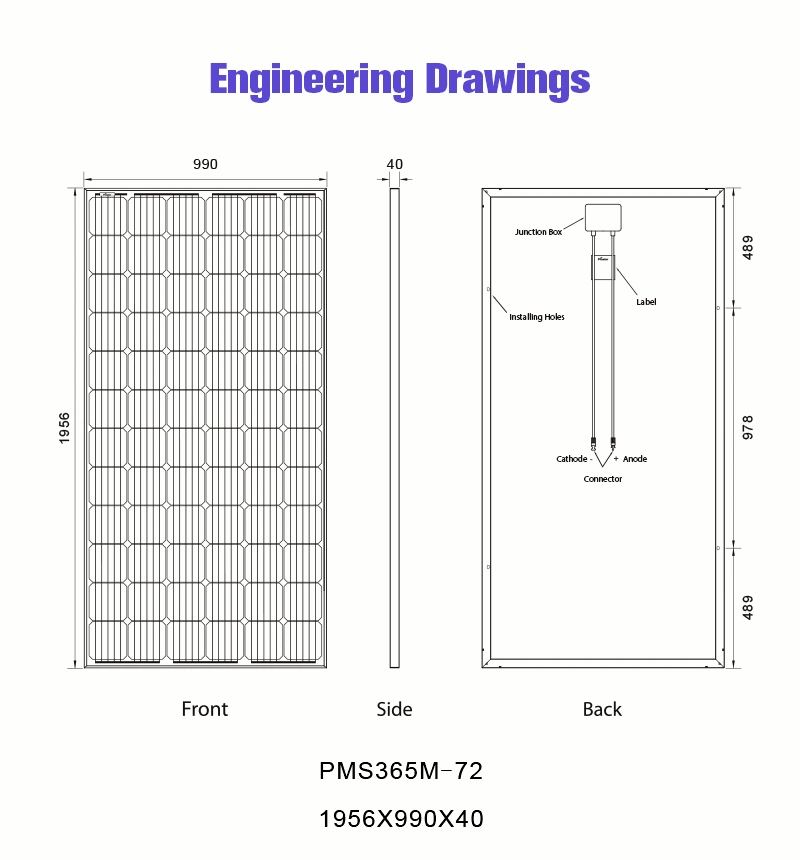

Size
1956x990x40mm
Weight
20.5Kg
